In the complex landscape of industrial fluid handling, Chemical & Electric Diaphragm Pumps represent the most versatile solution for transporting challenging media. These pumps operate on a displacement principle, utilizing a flexible diaphragm to move liquids without the need for mechanical seals or packing. This sealless design is the primary defense against leakage, making Chemical & Electric Diaphragm Pumps the industry standard for handling corrosive, abrasive, and flammable substances.

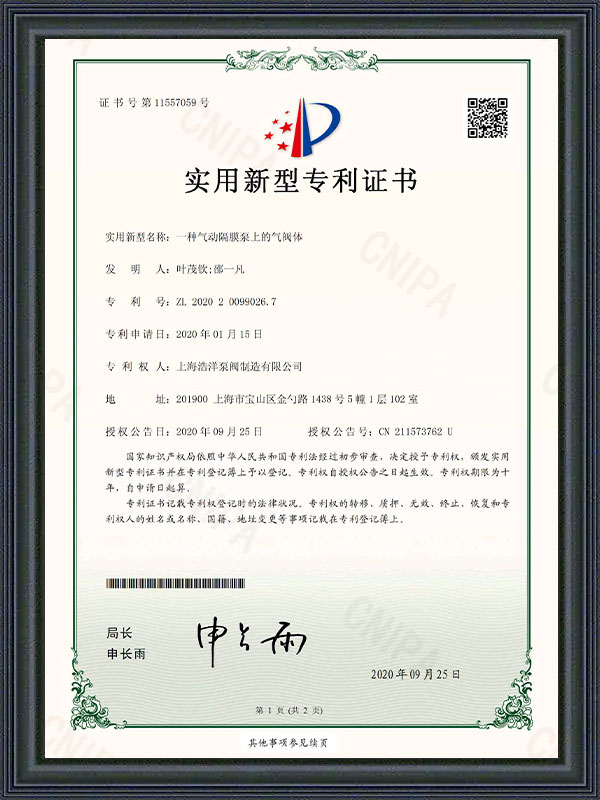

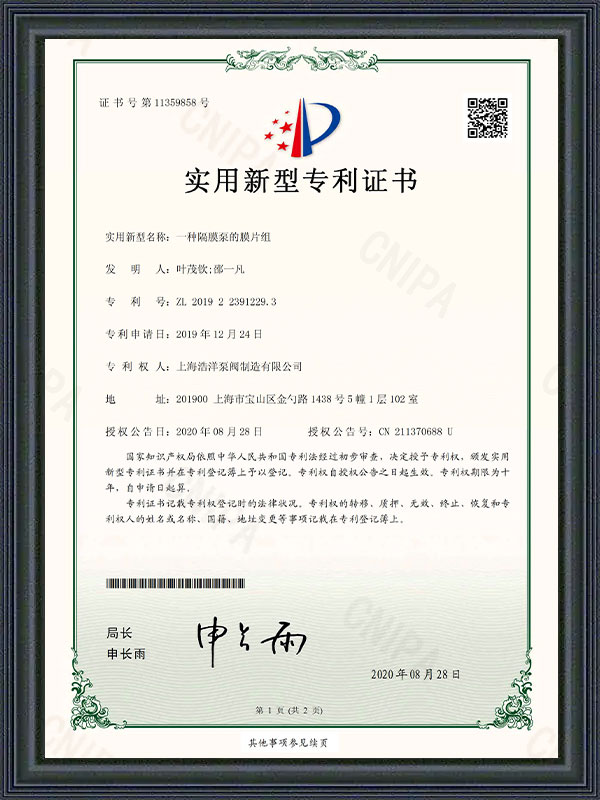

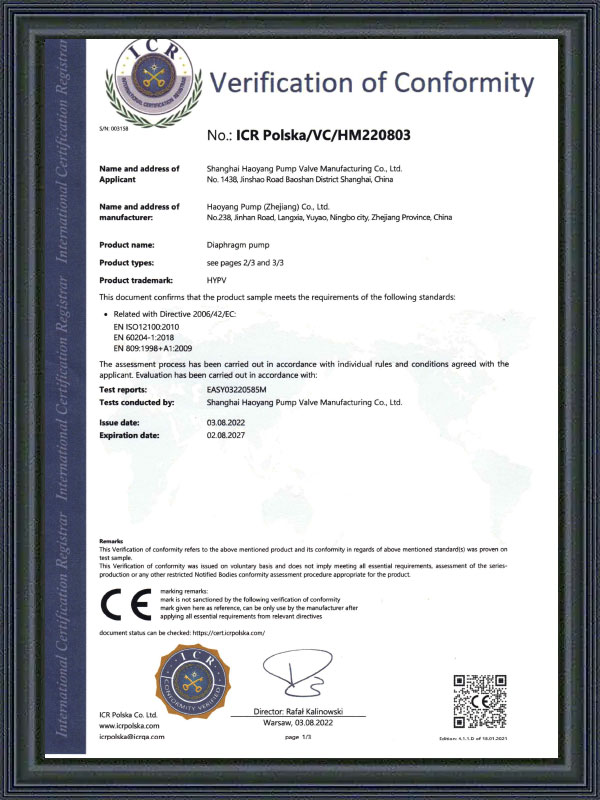

As a specialized China diaphragm pump manufacturer since 2006, Shanghai Haoyang Pump Valve Manufacturing Co., Ltd. has redefined the performance benchmarks of these units. By integrating advanced automation with modern standard workshops, our HY series provides unmatched stability and energy efficiency. Recognized as a "High and New Technology Enterprise," we ensure that every pump delivers a trouble-free operation life cycle, supported by multiple national patents and full European CE certification.

Comparative Analysis: Air-Operated vs. Electric Drive

Understanding the distinction between pneumatic and electric drive systems is essential for optimizing plant efficiency. While both belong to the Chemical & Electric Diaphragm Pumps category, their internal mechanics cater to different operational environments.

Principles and Core Technologies

Operational Principle

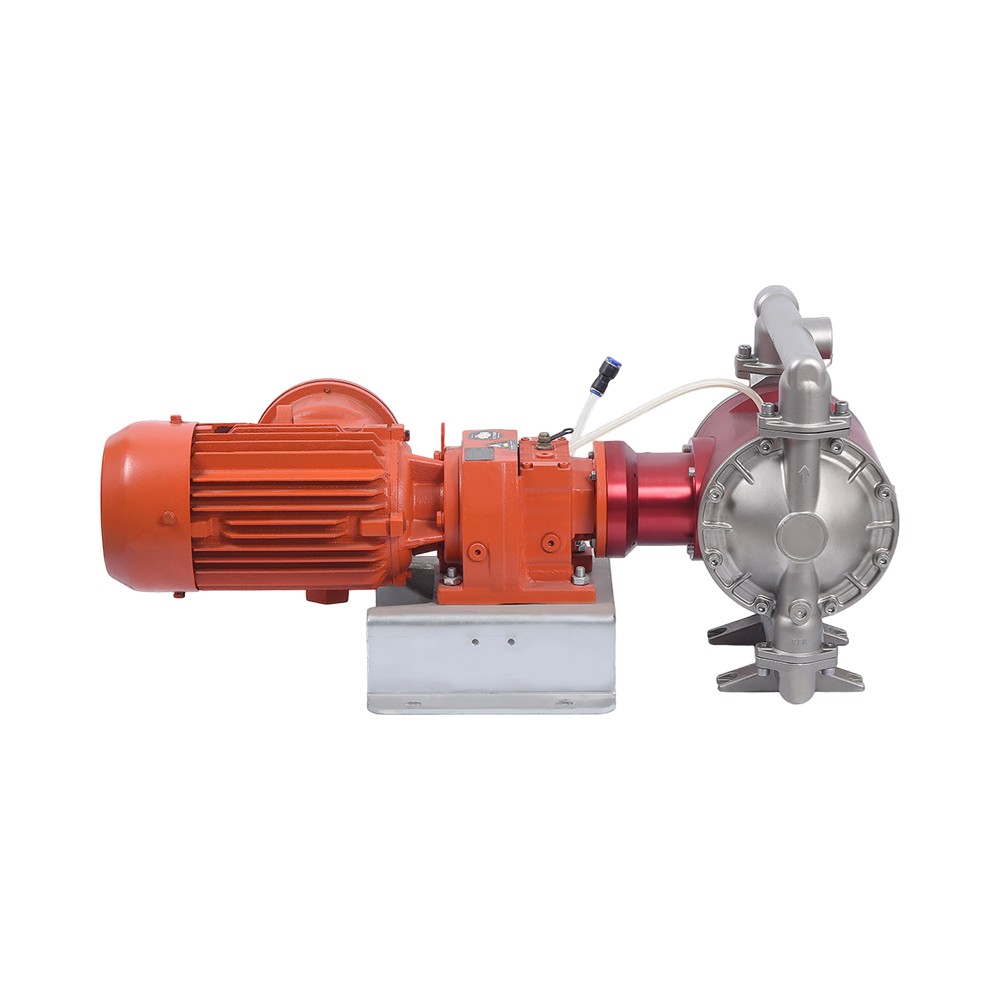

The pump consists of two chambers. In an AODD pump, the air valve directs compressed air behind diaphragm A, causing it to move outward and displace fluid. Simultaneously, diaphragm B is pulled inward, creating a vacuum to draw in new fluid. In electric versions, a mechanical eccentric shaft performs the same reciprocating movement. Shanghai Haoyang utilizes high-grade elastomers like PTFE, Viton, and Santoprene to ensure the diaphragms withstand millions of flex cycles.

Advanced Material Engineering

The body of our Chemical & Electric Diaphragm Pumps is available in Aluminum Alloy, Cast Steel, Stainless Steel, Polypropylene (PP), and PVDF. This allows our equipment to handle fluids with pH levels ranging from 0 to 14. Our unique "No-Stall" air valve technology ensures that the pump never gets stuck at dead centers, even under low-pressure conditions.

Industrial Application Scenarios

• Petrochemical Industry: Used for benzene, xylene, and heavy crude oil transfer where explosion-proof performance is mandatory.
• Fine Chemical Production: Safe handling of highly concentrated sulfuric acid, nitric acid, and organic solvents.
• Ceramic & Mining: Pumping abrasive glaze, lime slurry, and mining tailings with zero abrasive wear to the internal motor.
• Food & Beverage: Stainless steel models are utilized for transferring syrups, chocolate, and fruit pulps with high hygiene standards.

Case Study: A major pharmaceutical manufacturer replaced their gear pumps with Shanghai Haoyang HY series diaphragm pumps. The result was a 50% reduction in leak-related waste and a significant decrease in mechanical maintenance costs, as the diaphragm design requires no mechanical seals.

Professional Maintenance and Longevity Strategy

To maximize the ROI of your Chemical & Electric Diaphragm Pumps, a structured maintenance schedule is recommended:

1. Air Quality Management: For pneumatic models, ensure the air supply is dry and filtered. Moisture in the air line can lead to icing in the exhaust muffler.
2. Diaphragm Inspection: Check for "dimpling" or thinning every 2,000 operating hours. Shanghai Haoyang provides high-durability replacement kits to restore factory performance.
3. Torque Verification: Due to the reciprocating nature of the pump, bolts on the fluid covers should be checked periodically to prevent air or liquid leaks.
4. Solid Size Limits: Ensure the particle size in the fluid does not exceed the maximum allowable diameter for your specific HY model (typically up to 9mm for large units).

Frequently Asked Questions (FAQ)

Q: What is the maximum viscosity these pumps can handle?

A: Chemical & Electric Diaphragm Pumps from Shanghai Haoyang can handle viscosities up to 10,000 cps, making them ideal for thick resins and sludges that would stall other pump types.

Q: Can the pump operate if the discharge valve is closed?

A: Yes. Pneumatic models will simply "stall" without damage when the discharge pressure equals the air inlet pressure. Electric models require a pressure bypass or VFD to prevent motor overload.

Q: How does Shanghai Haoyang ensure product quality?

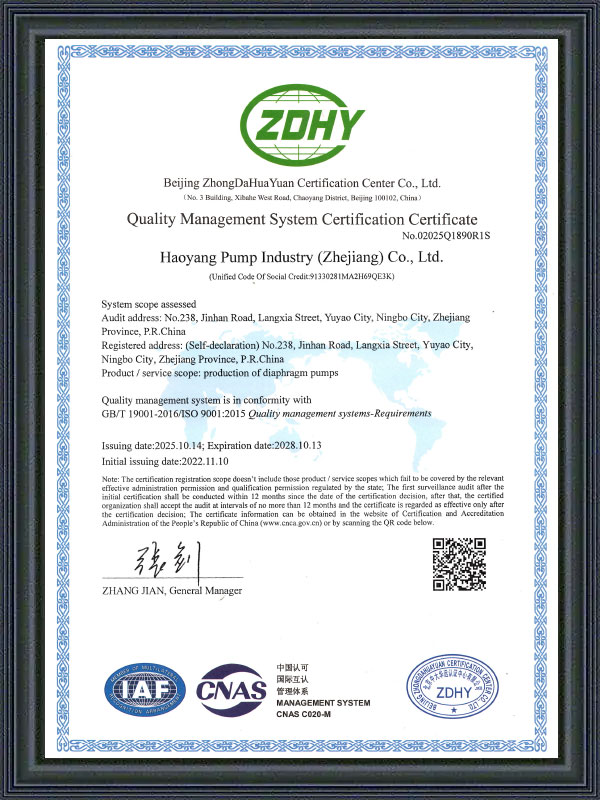

A: We utilize an ISO 9001 quality management system. Every pump undergoes a 100% factory test for suction, discharge, and leakage before shipping, ensuring it meets our rigorous stability standards.
